Scaffold Tube Joint Clamp Scaffolding Forged Coupler Beam Clamp Scaffolding
◆Product Overview
Scaffolding Coupler or scaffolding clamp is the main part of the tubular scaffolding system, it plays a fasten and connection functions in system. Simple structure and big loading power, make couplers easier and widely used on construction project. Scaffolding couplers include swivel and fixed coupler, forged and pressed coupler, etc. Different couplers have their own unique characteristics and be used in different construction situations.
Scaffolding coupler match with couplers are good choice for outside masonry construction and also proper for inside concrete support.
WST Drop Forged Scaffolding coupler is suitable for 48*48mm and 48.3*48.3mm pipe, they conform to the EN74 and BS1139 standard.
◆Product Parameter

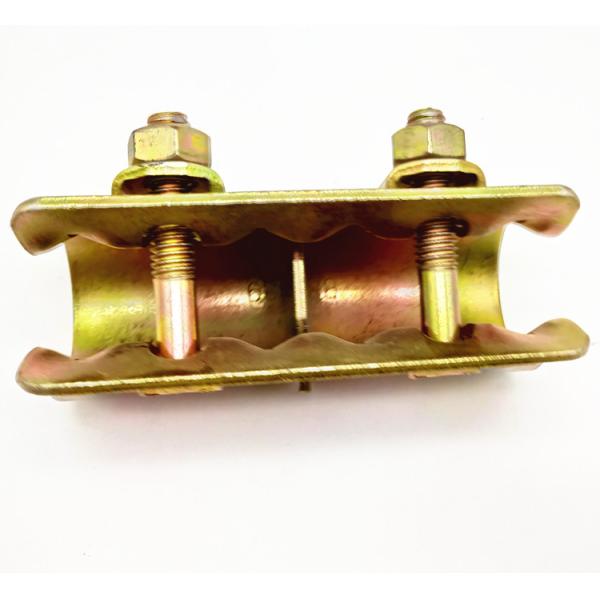

| Type | Scaffolding Sleeve Coupler |
| Sample |  |
| Material | Q235 Carbon Steel |
| Diameter | 48.3*48.3MM |
| Weight | 0.98kg |
| Surface treatment | Electric galvanized,silver color |
| Craft | Pressed |
| Application | Connect the scaffolding tube |
◆Product Advantage
1. Scaffolding coupler are made of Q235 steel with high strength.
2. Fast: High production efficiency, we could supply one 20ft container of coupler each day
3. With pressed and forged techinique, have high quality and property.
4.Scaffolding coupler are multi-functional; they can be cut at any length as the customers’ requirement.
5. Exported to many countries: such as Thailand,Vietnam,Bangladesh,Malaysia etc.
